| DOT MATRIX LED >> 5x8 bi-color >> 2.3 inch height 5x8 LED dot matrix, bi-color Email contact | Contact us | betlux@betlux.com

product image - optoelectronics - Dot matrix LED - led message display-2.3 inch height 5x8 LED dot matrix, bi-color
product2.3 inch height 5x8 LED dot matrix, bi-color
Part NOBL-M23C581xx,BL-M23D581xx
Dimension37.80 x 60.60mm
kindsDOT MATRIX LED -> 5x8 bi-color
DatasheetPDF datasheet of BL-M23C581xx,BL-M23D581xx-optoelectronics - Dot matrix LED - led message display

RoHs Compliance, Pb-free Anti-Static Attention
Feature:

2.3 inch height 5x8 LED dot matrix
2.3 inch Matrix Height(58.34mm)
Dot size 5.00mm, circle dot
Column: 5 Row: 8
Widthxheight: 37.80x60.60mm
Bi-color selected
Low current operation
High contrast and light output
Compatible with ASCII and EBCDIC code
Stackable horizontally
Column cathode and column anode available
Easy mounting on P.C.Boards or Sockets
Categorized for luminous intensity
Technically rugged
Standard: Gary surface and White dot
RoHs Compliance

Applied for:
trainbus information boardLED screnmessage boardindustry instrument

Super Bright LED Electrical-optical characteristics: (Ta=25掳C) (Test Condition: IF=20mA)
Electrical-optical characteristics:(Ta=25C) (Test Condition:IF=20mA)

Part No C.C. Part No C.A. color wavelength V typical V max Brightness
BL-M23C581EG BL-M23D581EG Green 570 2.2 2.5 450
BL-M23C581SG BL-M23D581SG Green 570 2.2 2.5 450

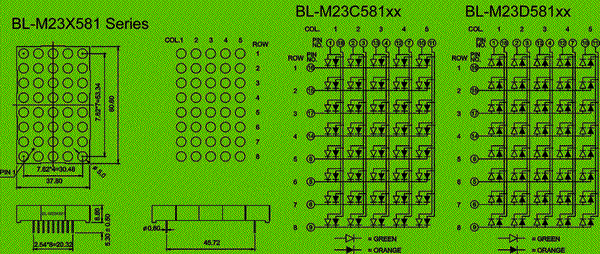

Product Dimension & Internal circuit diagram
optoelectronics - Dot matrix LED - led message display Package diagram
Notes:
1)All dimensions are in millimeters (inches)
2)Tolerance is 卤0.25(0.01")unless otherwise noted.
3)Specifications are subject to change without notice.

Reflector Surface color (1st number)/ dot Lens color (2nd number):

Number 0 1 2 3 4 5
Ref Surface Color White Black Gray Red Green
Dot Epoxy Color Water clear White diffused Red Diffused Green Diffused Yellow Diffused
Absolute maximum ratings (Ta= 25掳C)
Parameter S G E D UG UE PG   Unit
Forward Current I F 30 30 30 30 30 30 30   mA
Power Dissipation P d 75 80 80 75 75 65 110   mW
Reverse Voltage V R 5 5 5 5 5 5 5   V
Peak Forward Current I PF (Duty 1/10 @1KHZ) 150 150 150 150 150 150 150   mA
Operation Temperature T OPR -40 to +80 掳 C
Storage Temperature T STG -40 to +85 掳 C
Lead Soldering Temperature T SOL   Max.260卤 5 掳C for 3 sec Max. ( 1.6mm from the base of the epoxy bulb) 掳 C
